Belt conveyor

  • DDJ large angle belt conveyor

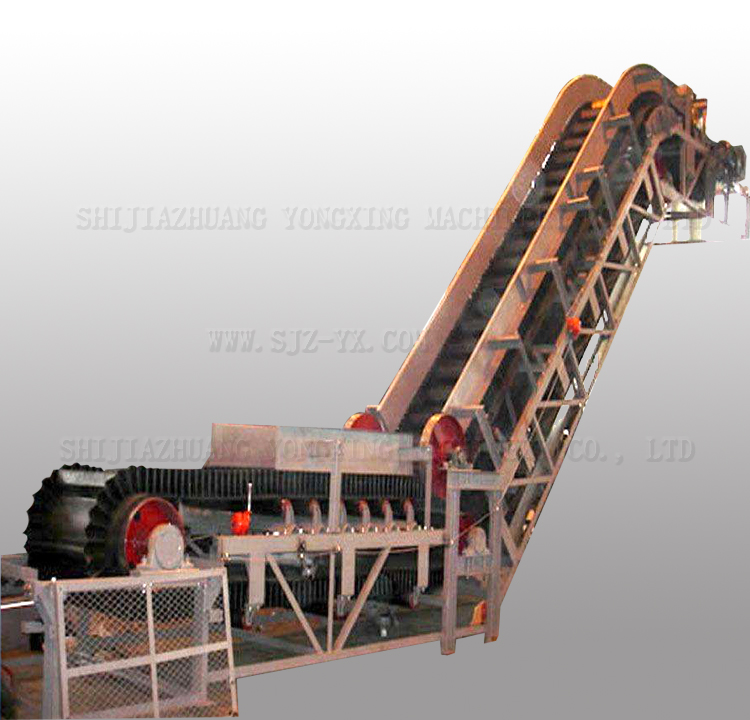

DDJ large angle belt conveyor

  • The main features of DDJ series belt conveyor with large angle and wavy edge are that it can be transported with large angle, compact structure and small floor area. In the process of conveying, it is not easy to scatter materials, which greatly improves the conveying efficiency. It is the most ideal conveying equipment in metallurgy, construction, coal, chemical industry, port, boiler and other fields. The mechanism is to add flexible and expandable rubber wave shape vertical "skirt" with different height on both sides of the parallel rubber belt, and fix "t", "C" and "TC" rubber diaphragms with certain strength and elasticity in the middle of the belt body.


DDJ type high angle belt conveyor

The main features of DDJ series belt conveyor with large angle and wavy edge are that it can be transported with large angle, compact structure and small floor area. In the process of conveying, it is not easy to scatter materials, which greatly improves the conveying efficiency. It is the most ideal conveying equipment in metallurgy, construction, coal, chemical industry, port, boiler and other fields. The mechanism is to add flexible and expandable rubber wave shape vertical "skirt" with different height on both sides of the parallel rubber belt, and fix "t", "C" and "TC" rubber diaphragms with certain strength and elasticity in the middle of the belt body. The rubber belt is divided into a box shaped community, which makes it not only easy to change the direction of the rubber conveyor belt in the transportation process, but also has the characteristics that the scraper conveyor and the bucket elevator are not easy to scatter materials, and can transport materials within a large range of inclined angle. Thus, the maximum conveying angle of the large angle side retaining conveyor can reach 90 degrees.

Main advantages:

(1) The utility model can transport materials at a large angle, save a large amount of equipment area, and completely solve the conveying angle which can not be reached by the ordinary belt conveyor;

(2) The overall investment cost of mechanized belt conveyor is low, about 20% ~ 30% of the investment cost is saved;

(3) Compared with the ordinary belt conveyor, bucket elevator and scraper conveyor, the comprehensive technical performance of the machine is superior;

(4) Large conveying capacity, higher lifting height, vertical height of single machine up to 500m;

(5) From horizontal to inclined (or vertical) can be smooth transition;

(6) Low energy consumption, simple structure and convenient maintenance;

(7) The tape has high strength and long service life.

Scope of use:

This series of products are widely used in building materials, grain, coal, chemical industry, hydropower and metallurgy sectors. It can transport various bulk materials with a bulk density of 0.5-2.5t/m3 in the environment of - 19 ° C to + 40 ° C. For materials with special requirements, such as materials with high temperature resistance or ingredients such as acid, alkali, oil, organic solvent, etc., special edge retaining belt of corresponding materials shall be used when ordering.
